05. While Loops

While loops

In addition to for loops which run for a set number of iterations, Python has another type of loop. while loops iterate until a particular condition is met.


[0] Set up

๐Ÿ’ป Start by opening the Terminal cloning this lab onto your laptop. As a reminder, we will run this command at the start of each lab.

mwc update
๐Ÿ’ป In the Terminal, type the following command to open the lab folder.
cd ~/desktop/making_with_code/cs9/unit00_drawing/lab_while

๐Ÿ’ป Enter the Poetry Shell to start the lab. As a reminder, we will run this command at the start of each lab, but only when we are inside a lab folder.

poetry shell
๐Ÿ‘พ ๐Ÿ’ฌ Exiting the poetry shell
When you want to exit the shell, you can type exit or ^D

๐Ÿ’ป Take a look at the files inside with: ls

  • guessing_game.py
  • hailstone_sequence.py

[1] What is a While Loop?

Conditions

while loops use conditions just like if statements. You can use operators to compare values or to generate True or False conditions. Looping until a condition is met can be useful when you are getting input from a user, generating random variables, or repeatedly changing a value.

user_input = -1
while user_input < 1 or user_input > 10:
    user_input = int(input("Tell me a number between 1-10 (inclusive): "))

While True / Break

You can also make while loops run indefinitely by setting the condition to True like this: while True: This can be useful when you want to loop a program repeatedly.

To stop a loop like this, you can use a break statement. Once the program reaches the break, the loop will exit.

You’ve actually already seen an example of this kind of loop when you learned about conditionals in the previous lab.

speed(10)

while True:
    drawing = input("What would you like me to draw? ")
    size = int(input("How big should I draw it? "))
    if drawing == "square":
        for i in range(4):
            forward(size)
            right(90)
    elif drawing == "quit":
        break
    else:
        print("Sorry, I don't know how to draw that...")

[2] Guessing Game

One common usage of while loops is in games. In this first part of the lab, you will be using a while loop to create a number guessing game.

๐Ÿ’ป Start by running the game file:
python guessing_game.py
----------------------------
Guess a number between 1-10!
----------------------------

Guess a number: 5
Guess a number: 10
Guess a number: 3
Correct
Guess a number: 8
Guess a number:

It works! But, even after you guess the correct number, the game continues. It’s up to you to fix the code!

๐Ÿ‘พ ๐Ÿ’ฌ Stopping a program
When you want to stop running a program, type ^C in the terminal.
๐Ÿ’ป Open the file in atom
atom guessing_game.py
๐Ÿ’ป Fix the game so the loop ends once the user guesses the correct number. It should also tell the user if their guess is too high or too low.

The final game should like something like this:

----------------------------
Guess a number between 1-10!
----------------------------

Guess a number: 5
Too high...
Guess a number: 3
Too high...
Guess a number: 2
Correct

[1] Hailstone Sequence

[Calculating the Sequence]

Now that you’ve gotten practice with while loops, you will be exploring a special sequence known as the hailstone sequence.

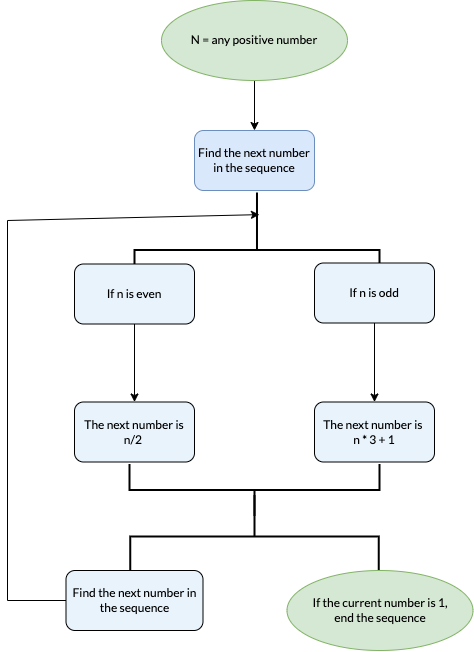

This sequence results from the following rules (known as the Collatz conjecture):

  • take any positive number n
  • find the next term of the sequence using the following rules:
    • if n is even, the next term is n/2
    • if n is odd, the next term is n*3+1
  • repeat until n = 1

The conjecture states that no matter the starting value of n, the sequences will always reach 1.

This sequence is interesting because though no number has ever been found that doesn’t reach 1,the Collatz conjecture has never been proven. This is an unsolved problem in mathematics!


[Pseudocode the Sequence]

This is another algorithm which will require pseudocode to figure out.

๐Ÿ‘€ Your program must:

  1. Ask the user what number the program should calculate the hailstone sequence of.
  2. Print out each number in the sequence.
  3. Print out how many steps it took for the sequence to reach 1

Here are some things to consider:

  • This program will require a loop. What kind of loop do you think is best? Remember that for loops run for a definite number of times and while loops run until a condition is met.
  • You will need to determine if each term is odd or even. What are some characteristics of even numbers that will help you determine if a number is even?
  • In addition to calculating each term, you must count how many steps it takes to reach 1 and report this number at the end.

๐Ÿ’ป To get started, open up hailstone_sequence.py.

atom hailstone_sequence.py

โœ๏ธ Use comments to complete the pseudocode to find the hailstone sequence of any starting number. There are currently three line of pseudocode in the file.


[Code the Sequence]

๐Ÿ’ป Translate your pseudocode into Python code. Once completed, your program will look something like this:

--- Hailstone Sequence ---

Input a starting number: 21
64
32
16
8
4
2
1
It took 7 steps to complete the sequence

[2] Deliverables

โšกโœจ
Once you’ve successfully completed the sequence be sure to fill out this Google form.

[3] Extension: Visualizing the Sequence

The sequences you formed above are known as hailstone sequences, because the terms move up and down but ultimately reach 1 like hailstones gaining layers of ice in a cloud.

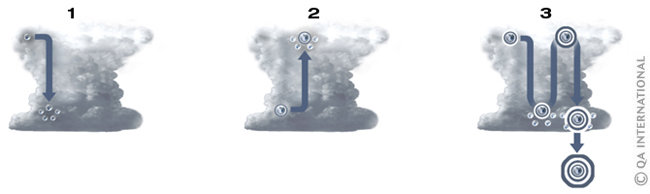

Hailstones forming in a cloud

This pattern can lead to some interesting visualizations of hailstone sequences.

๐Ÿ’ป Use your hailstone sequence code to create a visualization for the hailstone sequence using Turtle.

You can visualize the terms in a sequence starting with a specific number:

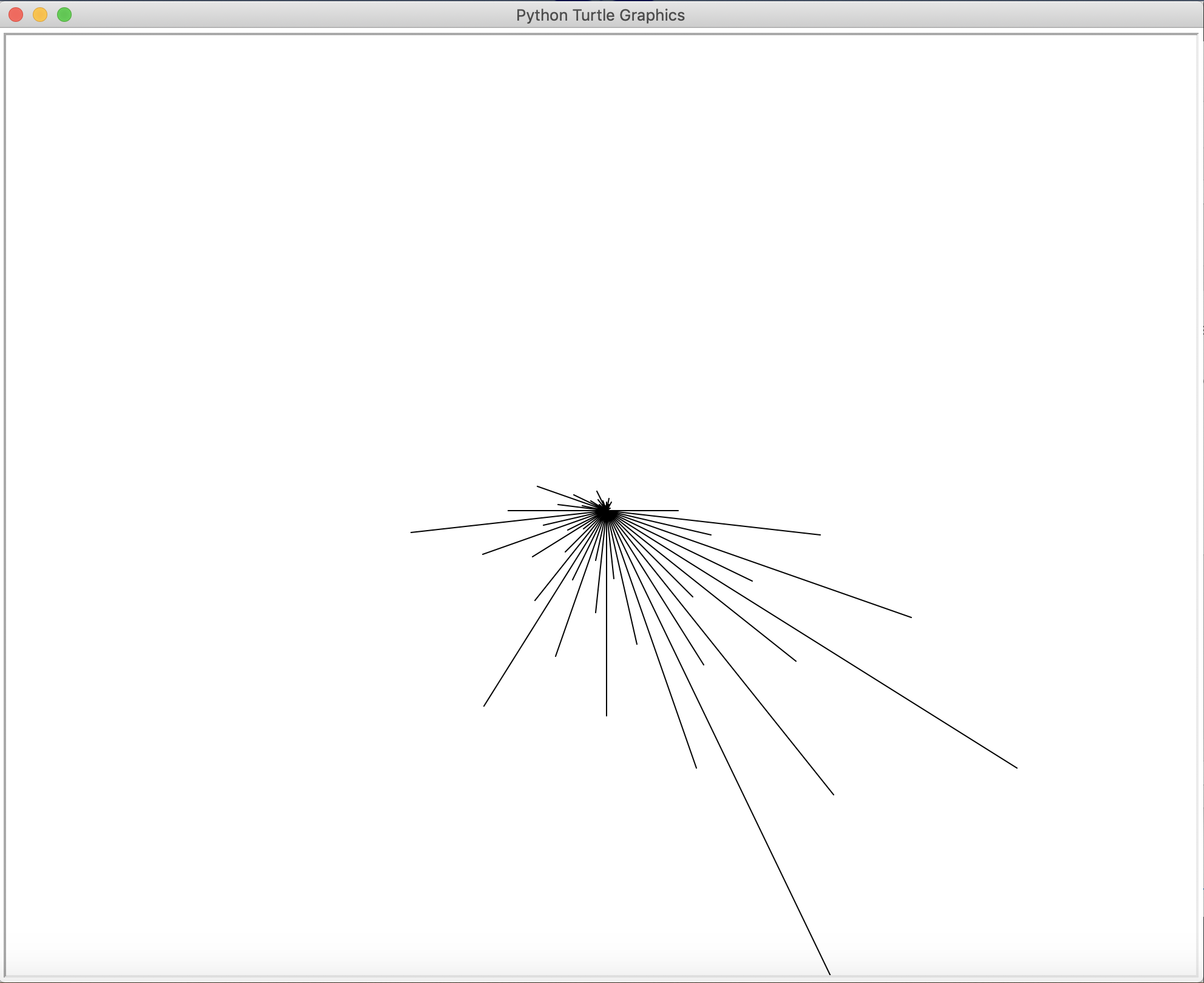

Terms in hailstone sequence starting at 590

Or you can visualize the number of steps it takes to reach one from a set of integers:

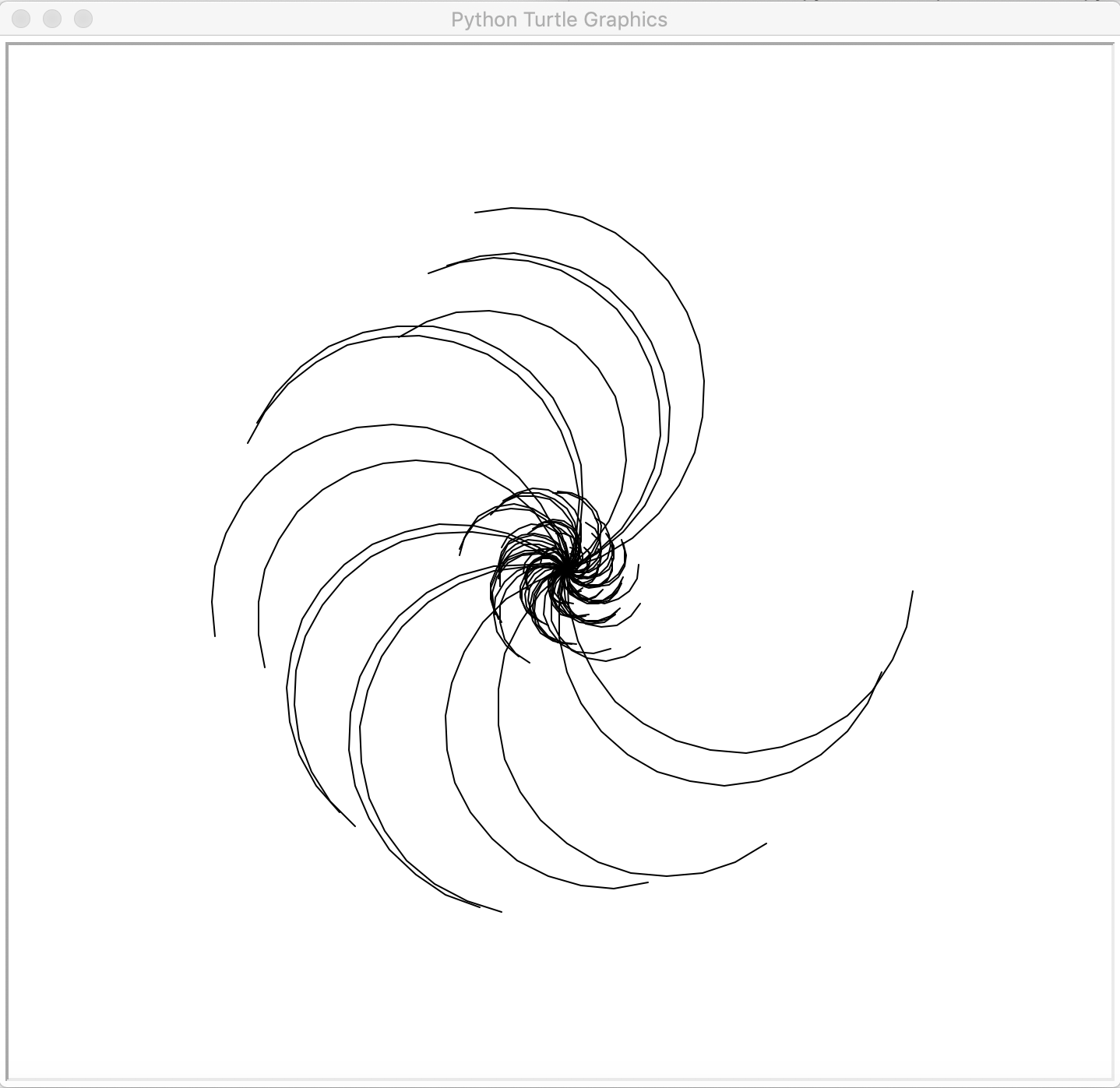

Steps to reach one in hailstone sequence as radii of half circles for integers 1-100


๐Ÿ’ป Add a random color element to the visualization

You will need to reference the following:
