06. Functions I

Functions Lab | Part I

In this lab, we will learn how to create and call functions. Functions are blocks of code that are reusable throughout a program. You’ve already encountered functions such as print(), which is a function built into Python.


[0] Set up

๐Ÿ’ป Start by opening the Terminal cloning this lab onto your laptop. As a reminder, we will run this command at the start of each lab.

mwc update
๐Ÿ’ป In the Terminal, type the following command to open the lab folder.
cd ~/desktop/making_with_code/cs9/unit00_drawing/lab_functions

๐Ÿ’ป Enter the Poetry Shell to start the lab. As a reminder, we will run this command at the start of each lab, but only when we are inside a lab folder.

poetry shell
๐Ÿ‘พ ๐Ÿ’ฌ Exiting the poetry shell
When you want to exit the shell, you can type exit or ^D

๐Ÿ’ป Take a look at the files inside with: ls

  • triangle.py
  • hexagon.py
  • icecream.py
  • grid.py

[1] What is a function?

Before we can talk about functions, we need to talk about code blocks. A code block is one or more lines of code. Here’s one:

forward(side_length)
left(120)

Sometimes we want to talk about how many times a code block should run, or whether it should run at all. Consider this code, which will draw a triangle:

for each_item in range(3):
    forward(side_length)
    left(120)

We have the same code block, but now it’s indented under the condition for each_item in range(3):. This means the code block should run once for each item in the range. A few things to note:

Often times we want to reuse a code block in different sections of a program. Functions allow for code reuse without needing to copy and paste code blocks. Here is a code block with a function definition and a function call:

1
2
3
4
5
6
7
def draw_triangle(side_length):
    #This function draws a triangle
    for i in range(3):
        forward(side_length)
        left(120)

draw_triangle(200)

A few things to note:

  • line 1
    • def defines a new function called draw_triangle()
    • it takes on parameter, or argument, called side_length
  • line 4
    • side_length is used as a variable
    • you can use function’s parameters inside the function as variables
  • line 7
    • draw_triangle(200) calls the function with a side_length of 200
    • Once you have written a function, you must call it to use it.
๐Ÿ‘พ ๐Ÿ’ฌ

Functions make your code simpler. Instead of writing all the code for a triangle over and over, you can get it right once and put it in a function.

Once you have written a function, you must call it. Calling a function tells Python to run that block of code. Remember, order matters. Code is read from top to bottom. You cannot call a function before it has been written.


[Editing a Function]

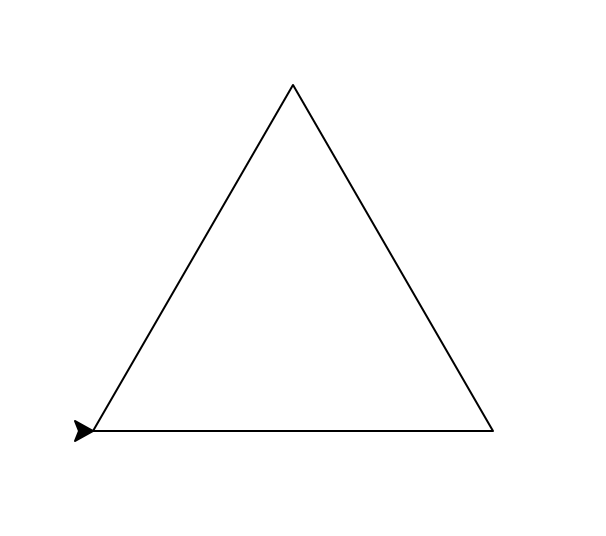

๐Ÿ’ป Let's start by running triangle.py

python triangle.py
๐Ÿ’ป Now, let's open the file:
atom triangle.py

Notice how it calls the draw_triangle() function with a side_length of 200.

๐Ÿ’ป Experiment with editing the parameter and then re-running the program. For example, change 200 to a 500.


[Writing a Function]

Now that you’ve had some practice editing a function, let’s write a new one.

๐Ÿ’ป Open the file: hexagon.py

atom hexagon.py

๐Ÿ’ป Write a function that draws a hexagon with any side_length. You will need to:

  1. Write the function draw_hexagon().
    • It should have one parameter called side_length
  2. Call the function draw_hexagon() below the function definition.
    • It should be able to be called with any number for the side_length.

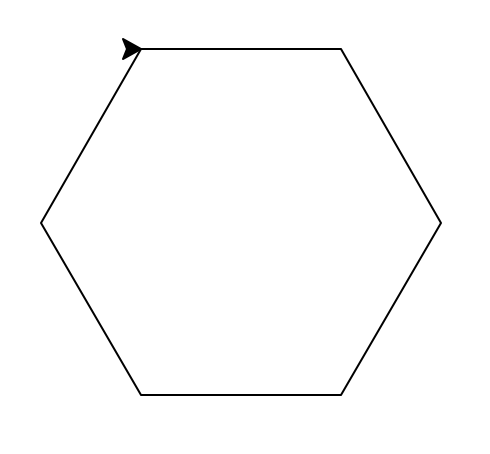

Your finished drawing should look something like this:


[2] Combining functions

When you want to draw something fancy, you need to break it down into smaller steps. Then you can write functions to do the smaller steps, and write more functions to combine small steps into bigger steps. This concept is called decomposition.

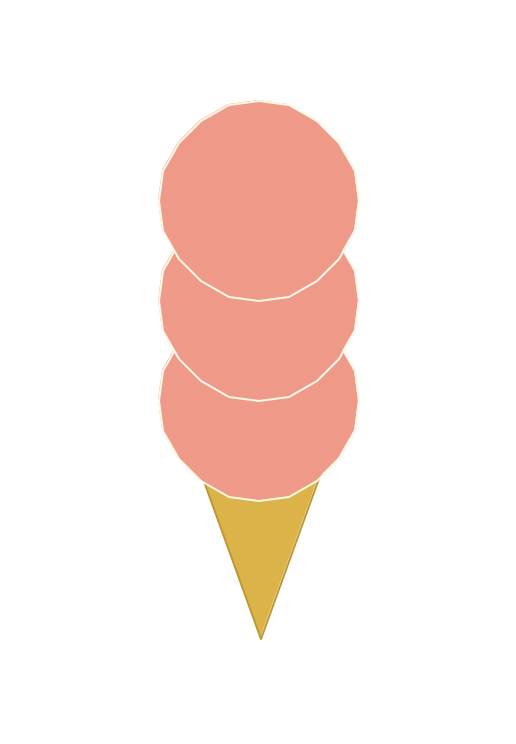

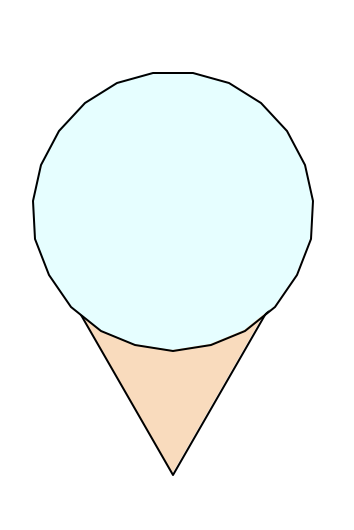

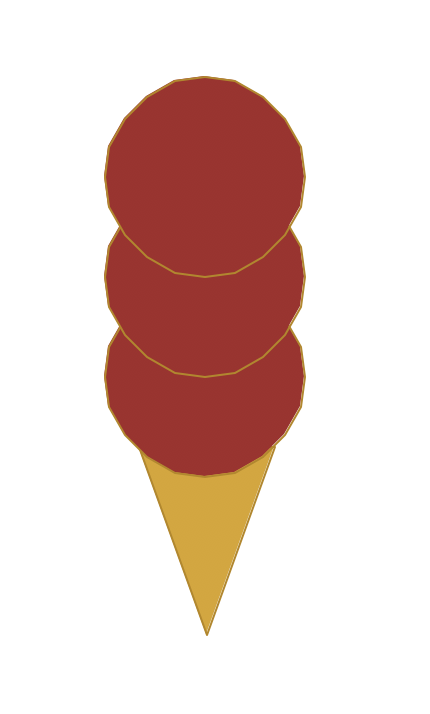

The code in this lab illustrates this. If we want to draw an ice cream cone with scoops of ice cream, we can break it down into steps:

  • Draw ice cream: draw_icecream()
    • Draw an ice cream cone: cone()
    • Draw a scoop of ice cream: scoop(num_scoops)

[Draw the Ice Cream]

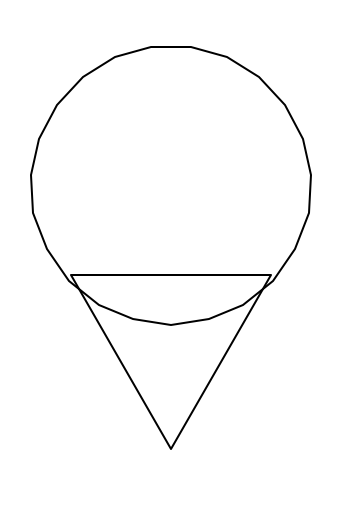

๐Ÿ’ป Start by running the file: icecream.py. Currently, it draws an incomplete ice cream.

python icecream.py

๐Ÿ’ป Open the file: icecream.py. As you can see, the function definitions are already provided. You just need to edit the following functions:

  • scoop(num_scoops)
  • cone()
  • draw_icecream(num_scoops)

๐Ÿ’ป Complete the ice cream drawing by editing the funcitons. The colors of the cone and ice cream scoops are up to you!

๐Ÿ‘พ ๐Ÿ’ฌ FYI: How to Fill a Shape with Color and More!

To fill your turtle drawing with color follow the below format. You must call begin_fill() before the shape has been drawn and end_fill() after.

def draw_triangle(sideLength):
    #This function draws a triangle
    for i in range(3):
        left(120)
        forward(sideLength)

fillcolor("Blue")
begin_fill()        #Tells the turtle to start the color fill
draw_triangle(20)
end_fill()          #Tells the turtle to stop the color fill

For a wide range of color options look at this chart.


[4] Deliverables

โšกโœจ
Once you’ve successfully completed the square pattern be sure to fill out this Google form.

[5] Extension

[Ice Cream Parlor]

Let’s return to ice_cream.py.

Right now, both the color of the ice cream and the number of scoops are pre-determined or hard-coded. If you wanted to change the color or number of scoops, you would have to go back into the code and change it yourself.

๐Ÿ’ป Expand the functionality of this program to simulate an ice cream parlor. The user should be able to choose the flavor of the ice-cream and the number of scoops.

๐Ÿ‘พ ๐Ÿ’ฌ Hints

Consider the following:

  • How will you implement the functionality of a flavor that is not hard-coded?
  • How will you include user input?
  • How will you translate the flavor “chocolate” to the color “brown?

Here is an example interaction:

python ice_cream.py

--- Welcome to the ISF ice cream parlor ---

What flavor would you like?
   > Select a flavor (chocolate, strawberry, vanilla): chocolate
How many scoops would you like?
   > Select number of scoops (max 3): 3

--- Enjoy your ice cream! Please come again! ---

[Press any key to exit]
