Functions Lab

In this lab, we will learn how to create and call functions. Functions are blocks of code that are reusable throughout a program. You’ve already encourated functions such as print(), which is a function built into Python.

A. What is a function?

Before we can talk about functions, we need to talk about code blocks. A code block is one or more lines of code. Here’s one:

forward(side_length)
left(120)

Sometimes we want to talk about how many times a code block should run, or whether it should run at all. Consider this code, which will draw a triangle:

for each_item in range(3):
    forward(side_length)
    left(120)

We have the same code block, but now it’s indented under the condition for each_item in range(3):. This means the code block should run once for each item in the range. A few things to note:

Whenever a code block is indented, there’s always a line introducing it. This line always ends with a colon.
The way you indent matters. Always use the tab key to indent.
When you’re done with a code block, just stop indenting.

Often times we want to reuse a code block in different sections of a program. Functions allow for code reuse without needing to copy and paste code blocks. Here is a function:

def draw_triangle(side_length):
    #This function draws a triangle
    for i in range(3):
        forward(side_length)
        left(120)

A few things to note:

The structure of the function definition looks a lot like a for-loop. There’s an introduction line ending in a colon, and then an indented code block.
The def keyword tells the computer you’re defining a new function.
The function’s name, draw_triangle, comes right after def. You could call a function x but you’ll regret it :)
After the function’s name is the list of arguments, surrounded by parentheses (side_length). Arguments, or parameters, are the things you need to tell the program before you can use the function. Think of arguments as questions the program might ask about what to do. For draw_triangle, the program wants to know “How long should the length of the sides be?” and you have to tell it the side_length. Some functions won’t have any arguments, so their parameters list will look like (). It depends how you design your functions.
The first line of the function’s code block should be a comment explaining what the function does.
In the function’s code block, you can use the arguments as variables.

👾 💬 FYI

Functions make your code simpler. Instead of writing all the code for a triangle over and over, you can get it right once and put it in a function.

Once you have written a function, you must call it. Calling a function tells Python to run that block of code. Remember, order matters. Code is read from top to bottom. You cannot call a function before it has been written.

✅ CHECKPOINT:

Look at the code below. Discuss the check-in questions in your group and answer the questions on your Google doc before moving on:

What argument does the hexagon function take?

How is that argument used in the hexagon function?

What line of code is the hexagon function called?

What line of code is the draw_pattern() function called?
def hexagon(side_length):
   #Draws a hexagon"
   for i in range(6):
       forward(side_length)
       right(360//6)

def draw_pattern():
    #Draws a hexagon pattern
    for each_side in range(6):
        pendown()
        hexagon(20)
        penup()
        forward(20)
        left(360 / 6)

draw_pattern()

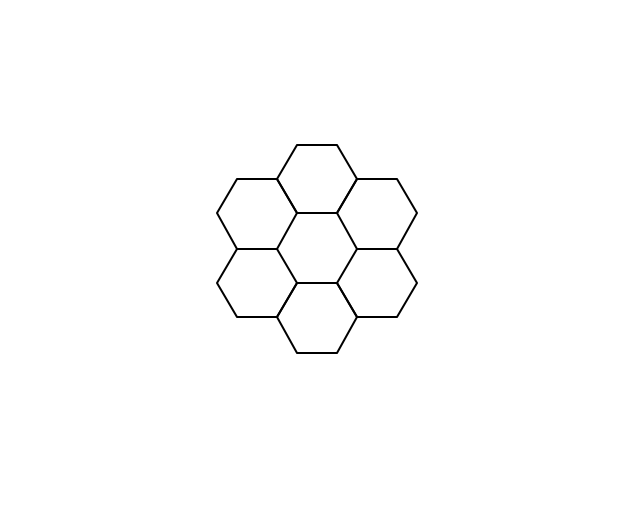

This program will draw the below pattern.

B. Writing Functions

💻 Create a new file in your cs9/unit_00 directory called lab_04.py and paste in this starter code:

# Unit 0 Lab 4
# Author: Emma Brown
#################################

from turtle import *

def setup(x, y):
    '''Sets up the turtle, ready to draw,
    at the given coordinates'''
    penup()
    goto(x, y)
    pendown()
    speed(0)
    setheading(0)


#################################

# B. WRITING CODE


def square(side_length):
    '''Draws a square using `side_length` as the length'''
    #YOUR CODE GOES HERE


def drawGrid(square_size,gap):
    '''
    - Draw a grid of squares using nested for loops.
    - Use the function `setup()` to move the turtle.
    - `square_size` should set the size of the square
    - `gap` should adjust the size of the gap inbetween the squares in the grid
    '''
    #YOUR CODE GOES HERE


#CALL DRAW GRID FUNCTION HERE


#Hides the turtle pen and keeps it open until key press
hideturtle()
input("Press enter to end drawing...")
clearscreen()

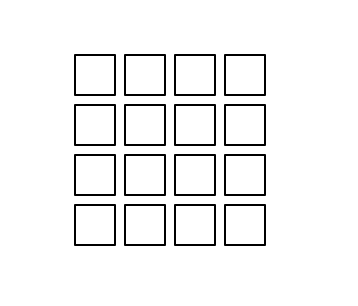

Let’s practice writing some functions. Fill in the code blocks for the functions in part B. If you succeed, you’ll get an image similar to the one below.

✅ CHECKPOINT:

Discuss the check-in questions in your group and answer the questions on your Google doc before moving on:

How did you decide where to call the square() function?

How did you use loops to create a grid?

C. Combining functions

When you want to draw something fancy, you need to break it down into smaller steps. Then you can write functions to do the smaller steps, and write more functions to combine small steps into bigger steps. This concept is called decomposition.

The code in part C illustrates this. If we want to draw an ice cream cone with scoops of ice cream, we can break it down into steps:

Draw ice cream: draw_icecream()
- Draw an ice cream cone: cone()
- Draw scoops of ice cream: icecream_scoop(flavor,numScoops)

💻 Your job is to write the functions: draw_icecream(), cone(), and icecream_scoop(). Paste in this starter code below into your lab_04.py file:

#################################

showturtle() #Shows the turtle as it draws

# C. COMBINING FUNCTIONS

def cone():
    "Draws an ice cream cone"
    # YOUR CODE HERE


def icecream_scoop(flavor, numScoops):
    '''Draws scoops of ice cream.
    Takes an ice cream flavor
    and number of scoops as paramters'''
    # YOUR CODE HERE


#YOUR draw_icecream() FUNCTION GOES HERE
    '''Draws an ice cream cone
    with the ice cream scoop on top.
    Use the function setup() to set the placement of the drawing.'''

#CALL DRAW ICE CREAM FUNCTION HERE

#Hides the turtle pen and keeps it open until key press
hideturtle()
input("Press enter to end program...")

How to Fill a Shape with Color and More! ↕

To fill your turtle drawing with color follow the below format. You must call begin_fill() before the shape has been drawn and end_fill() after.

def draw_triangle(sideLength):
    #This function draws a triangle
    for i in range(3):
        left(120)
        forward(sideLength)

fillcolor("Blue")
begin_fill()        #Tells the turtle to start the color fill
draw_triangle(20)
end_fill()          #Tells the turtle to stop the color fill

For a wide range of color options look at this chart.

A completed part C will look similar to the image below. The colors of the cone and ice cream scoops are up to you!

Deliverables

For this lab, you should submit the following:

The your lab_04.py file with the code you wrote for each of the parts
Your Google Doc with responses to the checkpoint questions
